The Ultimate 7-Step Guide To Winding And Threading A Bobbin Flawlessly In 2025

• minute read
Contents

Mastering the art of winding and threading a bobbin is the fundamental secret to flawless sewing, yet it remains one of the most common sources of frustration for beginners and experienced sewers alike. A poorly wound or incorrectly threaded bobbin is the primary culprit behind frustrating issues like tangled "thread nests," skipped stitches, and uneven tension on your fabric. This definitive guide, updated for December 19, 2025, breaks down the entire process—from winding the perfect spool to threading different machine types—ensuring your next project starts and finishes without a hitch.

The process is divided into two critical phases: winding the thread onto the small bobbin spool, and then correctly installing and threading that spool into your machine's bobbin case. Ignoring the small details in either phase can lead to major headaches, often requiring you to re-thread the entire machine. We will cover the essential techniques for achieving a tightly, evenly wound bobbin and provide pro-tips for both the popular drop-in and traditional front-loading bobbin systems.

The Essential Pre-Winding Checklist: Preparation is Key

Before you even touch the bobbin winder, proper preparation is crucial. The quality of your final stitch depends heavily on a smooth, consistent start.

  • Consult Your Manual: Every sewing machine, whether a modern computerized model or a vintage mechanical workhorse, has slight variations. Always check your machine's manual for the specific path the thread must follow to the tension disk.
  • Use the Right Bobbin: Bobbins are not universal! Using the wrong size or an inexpensive plastic bobbin in a machine designed for metal can cause tension issues and even damage the bobbin case. Ensure you are using the correct class (e.g., Class 15, Class L, Class 66) recommended by the manufacturer.
  • Place the Spool Correctly: The spool of thread should be placed on the spool pin so that the thread unwinds in the same direction as the spool pin's rotation. This prevents the thread from snagging or twisting before it hits the tension guide.
  • Disengage the Needle: On most machines, you must disengage the needle mechanism to prevent it from moving while winding the bobbin. This is usually done by pulling out or pushing in the handwheel (flywheel) on the side of the machine.

The 5-Step Master Guide to Winding a Perfect Bobbin

A perfect bobbin is one that is wound tightly and evenly from edge to edge. This consistency is what ensures balanced thread tension between the top and bottom stitches.

  1. Guide the Thread to the Tension Disk: Pull the thread from the spool and guide it through the machine's designated bobbin winding thread guide. This guide is often a small metal loop or hook. From there, wrap the thread around the bobbin winding tension disk. This disk applies the necessary friction to ensure a tight, even wind.
  2. Secure the Thread to the Bobbin: Take the end of the thread and pass it through the small hole on the bobbin spool. Some machines require you to loop it around the center barrel. Hold the tail of the thread firmly.

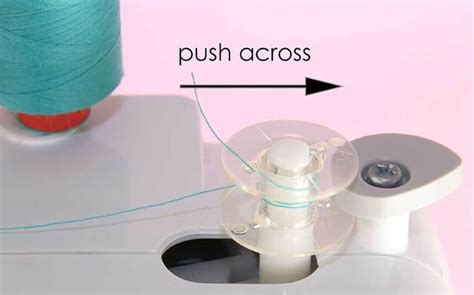

  3. Place the Bobbin on the Winder: Place the bobbin onto the bobbin winder spindle (or pin). Push the spindle to the right until it clicks into the winding position. This engages the winding mechanism.
  4. Start Winding: Gently press the foot pedal (or the start/stop button). The bobbin will spin rapidly. Allow it to spin for a few revolutions, then stop and trim the thread tail you were holding. This ensures the thread is securely locked to the bobbin barrel.
  5. Complete the Wind: Continue winding until the bobbin is full. Most machines have an automatic shut-off mechanism that will push the spindle back to the left or stop the winding once the bobbin is properly filled. If your machine doesn't, stop winding when the thread is just below the rim of the bobbin.

Threading the Bobbin: Drop-In vs. Front-Loading Systems

Once your bobbin is perfectly wound, the final, crucial step is installing it correctly. The threading path differs significantly depending on your machine's bobbin system.

Drop-In Bobbin System (Top-Loading)

The drop-in bobbin is common on modern sewing machines and is generally easier to manage. The bobbin is placed directly into a compartment under the needle plate.

  • Orientation is Key: Place the bobbin into the bobbin compartment. The thread must be unwinding in the correct direction—usually clockwise or counter-clockwise, depending on the machine. Many machines have a small diagram to show the correct direction.
  • Follow the Path: Pull the thread into the first notch or guide slot. Gently pull the thread along the channel, following the marked path (often a curved line) until it snaps into the tension spring. This is vital for consistent stitching.
  • Leave a Tail: Leave a thread tail of about six inches hanging out of the compartment. Replace the bobbin cover plate.

Front-Loading Bobbin System (Side-Loading)

The front-loading system, often found in older or industrial machines, uses a separate metal bobbin case that slides into a shuttle race.

  • Insert into the Case: Place the bobbin into the metal bobbin case. The thread must be unwinding in the correct direction (again, check your manual).
  • Engage the Tension Spring: Pull the thread into the small slit on the side of the bobbin case. Slide the thread under the tension spring until it clicks into the slot. This click confirms the thread is under the proper tension.
  • Install the Case: Hold the bobbin case by the hinged latch and slide it into the machine's shuttle race or compartment. Release the latch once it is firmly seated.

Advanced Troubleshooting: Fixing Uneven Winding and Thread Nests

Even with the best intentions, bobbin problems can arise. Here are the most common issues and their solutions to help you maintain optimal stitch quality.

Issue 1: Uneven Bobbin Winding

If the thread piles up on one side of the bobbin, it will cause inconsistent tension and looping in your stitches.

  • The Fix: The thread is likely not passing correctly through the bobbin winding tension disk. Ensure it is securely wrapped around the disk to provide the necessary friction. If the problem persists, check for lint or debris caught in the disk.

Issue 2: The Dreaded Thread Nest

A "thread nest" or "bird's nest" is a tangled mess of thread on the underside of your fabric, often indicating a problem with the bobbin thread or top tension.

  • The Fix: This is often caused by the bobbin thread not being correctly pulled up before you start sewing. To fix this, hold the needle thread and turn the handwheel towards you (never away!) to lower and raise the needle. The top thread will catch the bobbin thread, forming a loop. Pull the loop up and back, under the presser foot, before you begin sewing.

Issue 3: Bobbin Winder Not Spinning

If the winder spindle engages but the bobbin doesn't spin, the mechanism may be faulty.

  • The Fix: Check the rubber tire or wheel that connects the winder to the machine's drive. If it is worn, hard, or has a flat spot, it will need to be replaced. This is a common maintenance issue on older machines.

By following these detailed steps for both winding and threading, you can eliminate the most common sewing machine issues. A perfectly wound and threaded bobbin is the foundation of a beautiful, durable stitch, allowing you to focus on the creative aspects of your sewing projects.
